46-2W44.3CP0.001 | eao

Selector switch, 2 switching positions, illuminable, latching/groping, waistband round, red/white, front ring silver, 90°, mounting Ø 22.3 mm, 46-2W44.3CP0.001

Order No.: 12G0391
MPN:
46-2W44.3CP0.001
Series: 46
46-2W44.3CP0.001 eao Actuators, Signal Elements and Front Elements

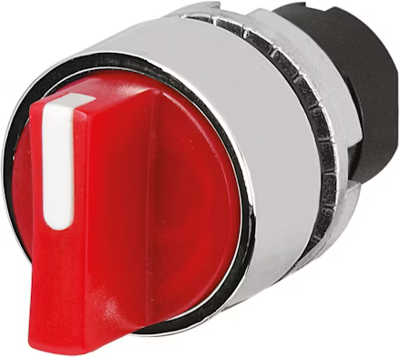

Image may differ
Unit Price (€ / pc.)
19.3970 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
19.40 € *
Price list
Quantity
Price per unit*
1 pcs.
19.3970 €
5 pcs.
18.3736 €
10 pcs.
17.4573 €
15 pcs.
16.3625 €
*incl. VAT plus shipping costs
Subject to prior sale

Selector switch, 46-2W44.3CP0.001, eao

Selector switch, Ø 22.3 mm, Ø 30 mm, illuminative, Red, short, round, Silver, Metal, Maintained - Momentary, IP65, IK03.

Technical specifications
Rotation angle 90°
Contact function latching/groping
can be illuminated Yes
Installation diameter 22.3 mm
Product type selector switch
Actuator colour red/white
Collar shape of the front frame round
Type of mounting panel mounting
Version 2 switching positions
Protection class IP65
Front ring colour silver
Logistics
Country of origin IT
Customs tariff number 85365007
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
