46-2828.3CV0.001 | eao

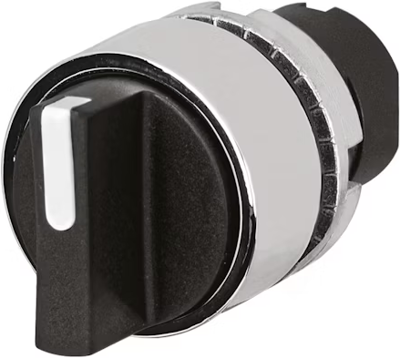

Selector switch, 2 switching positions, unlit, latching, waistband round, black/white, front ring silver, 90°, mounting Ø 22.3 mm, 46-2828.3CV0.001

Order No.: 12G0357
MPN:
46-2828.3CV0.001
Series: 46
46-2828.3CV0.001 eao Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
15.6961 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
15.70 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6961 €
5 pcs.
14.8631 €
10 pcs.
14.1253 €
15 pcs.
13.2447 €
*incl. VAT plus shipping costs
Subject to prior sale

Selector switch, 46-2828.3CV0.001, eao

Selector switch, Ø 22.3 mm, Ø 30 mm, non illuminative, Black, short, round, Silver, Metal, Maintained - Maintained, IP65, IK03.

Technical specifications
Rotation angle 90°
Contact function latching
can be illuminated No
Installation diameter 22.3 mm
Product type selector switch
Actuator colour black/white
Collar shape of the front frame round
Type of mounting panel mounting
Version 2 switching positions
Protection class IP65
Front ring colour silver
Logistics
Country of origin IT
Customs tariff number 85365007
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
