46-2819.1EX0.008 | eao

Selector switch, 3 switching positions, unlit, latching, waistband round, black/green, front ring black, 2 x 60°, mounting Ø 22.3 mm, 46-2819.1EX0.008

Order No.: 12G0352
MPN:
46-2819.1EX0.008
Series: 46
46-2819.1EX0.008 eao Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
11.0670 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
11.07 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0670 €
5 pcs.
10.4839 €
15 pcs.
9.9603 €
25 pcs.
9.3296 €
*incl. VAT plus shipping costs
Subject to prior sale

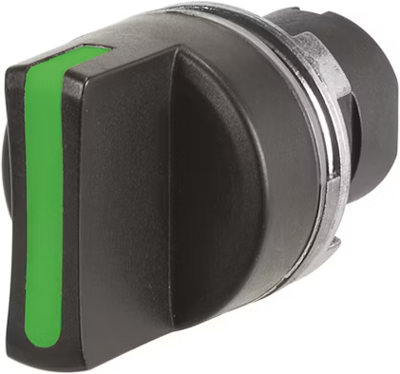

Selector switch, 46-2819.1EX0.008, eao

Selector switch, Ø 22.3 mm, Ø 29 mm, non illuminative, Black, short, round, Black, Plastic, Maintained - Rest - Maintained, IP65, IK06.

Technical specifications
Rotation angle 2 x 60°
Contact function latching
can be illuminated No
Installation diameter 22.3 mm
Product type selector switch
Actuator colour black/green
Collar shape of the front frame round
Type of mounting panel mounting
Version 3 switching positions
Protection class IP65
Front ring colour black
Logistics
Country of origin IT
Customs tariff number 85365007
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
