46-2818.1CV0.007 | eao

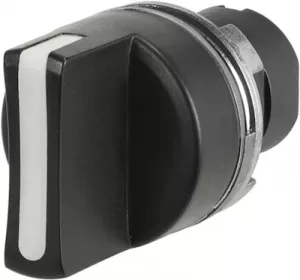

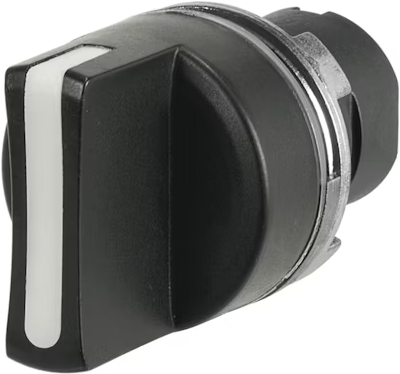

Selector switch, 4 switching positions, unlit, latching, waistband round, black/white, front ring black, 52°, mounting Ø 22.3 mm, 46-2818.1CV0.007

Order No.: 12G0349
MPN:
46-2818.1CV0.007
Series: 46
46-2818.1CV0.007 eao Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
15.1606 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
15.16 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1606 €
5 pcs.
14.3633 €
10 pcs.
13.6493 €
15 pcs.
12.7925 €
*incl. VAT plus shipping costs
Subject to prior sale

Selector switch, 46-2818.1CV0.007, eao

Selector switch, Ø 22.3 mm, Ø 29 mm, non illuminative, Black, short, round, Black, Plastic, Maintained - Maintained - Maintained - Maintained, IP65, IK06.

Technical specifications
Rotation angle 52°
Contact function latching
can be illuminated No
Installation diameter 22.3 mm
Product type selector switch
Actuator colour black/white
Collar shape of the front frame round
Type of mounting panel mounting
Version 4 switching positions
Protection class IP65
Front ring colour black
Logistics
Country of origin IT
Customs tariff number 85365007
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
