EA-PS 824-025KSM | EA-Elektroautomatik

Power supply, 24 to 28 VDC, 2.5 A, 60 W, EA-PS 824-025KSM

Order No.: 24K2412

EAN: 4099891282806

MPN:

EA-PS 824-025KSM

Image may differ

Key Specification:

Number of outputs 1

Output current 2.5 A

Output voltage DC 24 to 28 VDC

Download Datasheet Technical specifications

Description

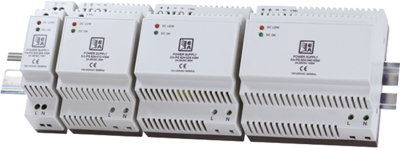

Power supplies for DIN rail mounting, type EA Serie PS 800 KSM.

With overvoltage and thermal overload protection, overload- and short circuit-proof; Input voltage range: 90 to 264 VAC/47 to 63 Hz, 120 to 370 VDC. Efficiency (230 V): 83%. Degree of protection: IP 20. Insulation class: II. Height: 91 mm. Depth: 57 mm.

Power supplies, output voltage 24 to 28 VDC.

Residual ripple: max. 20 mVpp, PS 824-040 KSM max. 90 mVpp.

Technical attributes (rated current, rated power, width, weight): PS 824-025 KSM, 2.5 A, 60 W, 71 mm, 250 g

Technical specifications

Filter	Property	Value
	Number of outputs	1
	Output current	2.5 A
	Output voltage DC	24 to 28 VDC
	Input voltage AC	90-264 VAC, 120-370 VDC
	Power	60 W
	efficiency	83 %
	Degree of protection (IP)	IP20
	Width	71 mm
	Height	91 mm
	Depth	57 mm
