EA-PS 812-022KSM | EA-Elektroautomatik

Power supply, 12 to 15 VDC, 2.5 A, 30 W, EA-PS 812-022KSM

Order No.: 24K2402

EAN: 4099891282776

MPN:

EA-PS 812-022KSM

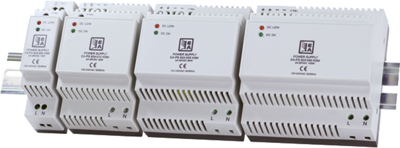

Image may differ

Key Specification:

Number of outputs 1

Output current 2.5 A

Output voltage DC 12 to 15 VDC

Download Datasheet Technical specifications

Description

Power supplies for DIN rail mounting, type EA Serie PS 800 KSM.

With overvoltage and thermal overload protection, overload- and short circuit-proof; Input voltage range: 90 to 264 VAC/47 to 63 Hz, 120 to 370 VDC. Efficiency (230 V): 83%. Degree of protection: IP 20. Insulation class: II. Height: 91 mm. Depth: 57 mm.

Power supplies, output voltage 12 to 15 VDC.

Residual ripple: max. 40 mVpp.

Technical attributes (rated current, rated power, width, weight): PS 812-022 KSM, 2.5 A, 30 W, 53 mm, 190 g

Technical specifications

Filter	Property	Value
	Number of outputs	1
	Output current	2.5 A
	Output voltage DC	12 to 15 VDC
	Input voltage AC	90-264 VAC, 120-370 VDC
	Power	30 W
	efficiency	83 %
	Degree of protection (IP)	IP20
	Width	53 mm
	Height	91 mm
	Depth	57 mm
