3130-F110-P7T1-W01Q-16A | E-T-A
Circuit breaker, thermal, 1 pole, 16 A, 50 V (DC), 240 V (AC), faston plug 6.3 x 0.8 mm, snap-in, IP40, 3130-F110-P7T1-W01Q-16A
Unit Price (€ / pc.)
19.6707 € *
Standard delivery time from the manufacturer is: 6 Weeks
Device circuit breaker, 3130-F110-P7T1-W01Q-16A, E-T-A

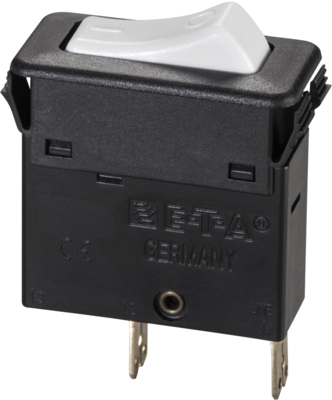

The 3130-F110-P7T1-W01Q-16A is a single pole rocker switch with thermal trip free circuit breaker which has a compact design for snap-in panel mounting.
Features
- Reduced mounting and wiring time
- Less space requirement
Applications
- Transformers
- Household and office machines
- Electrical tools
- Mobile homes
- Construction vehicles
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Actuator | rocker | |
| Degree of protection (IP) | IP40 | |
| Rated current | 16 A | |
| Rated voltage (AC) | 240 V | |
| Version | thermal | |
| Connection | faston plug 6.3 x 0.8 mm | |
| Rated voltage (DC) | 50 V | |
| Type of mounting | snap-in | |
| Product type | circuit breaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
