3120-N554-PTT1-W02D-2A | E-T-A
Circuit breaker, 2 pole, 2 A, 50 V (DC), 240 V (AC), push-in, snap-in, IP40, 3120-N554-PTT1-W02D-2A
Unit Price (€ / pc.)
36.0451 € *
Available: 0 pcs.
Leadtime: On Request **

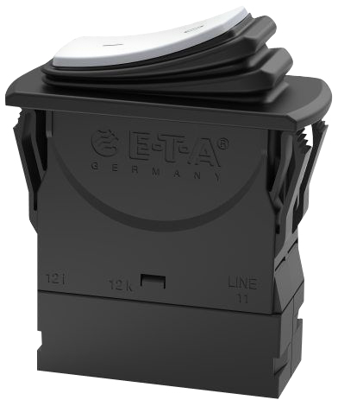

Thermal circuit breaker, 3120-N554-PTT1-W02D-2A, E-T-A
The 3120-N554-PTT1-W02D-2A is a thermal circuit breaker/switch combination that unites overcurrent protection and the function of an ON/OFF switch within a single component.
Features
- High dielectric strength
- Shock resistance
- High interrupting capacity
- High breaking capacity
Applications
- Medical and laboratory equipment
- Apparatus and machine construction
- Professional tools
- Household and garden appliances
Technical specifications
| Connection | Push-in | |
| Type of mounting | Snap-in | |
| Actuator | Wippe | |
| Rated voltage (AC) | 240 V | |
| Rated voltage (DC) | 50 V | |
| Rated current | 2 A | |
| Pin number | 2-polig | |
| Product type | Schutzschalter | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
