1410-F110-P1F1-W14QB2-1A | E-T-A
Circuit breaker, thermal, 1 pole, 1 A, 28 V (DC), 240 V (AC), faston plug 2.8 x 0.8 mm, snap-in, IP30, 1410-F110-P1F1-W14QB2-1A
Unit Price (€ / pc.)
19.4089 € *
Standard delivery time from the manufacturer is: 4 Weeks

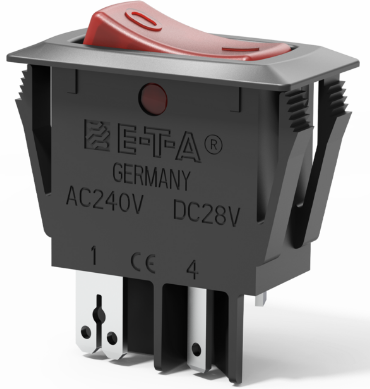

Thermal overcurrent circuit breaker, 1410-F110-P1F1-W14QB2-1A, E-T-A
Miniaturised single pole rocker switch/thermal circuit breaker combining ON/OFF switching and extremely fast overload performance in a single component. Under overload conditions an internal neon (filament bulb for low voltages) illuminates to give a clear signal of the tripped status of the mechanism and thereby the cause of power interruption. Returning the rocker switch through the OFF position and back ON will reset the mechanism and restore the supply.
Applications
- Motors
- Transformers
- Solenoids
- Hand-held machines and appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Actuator | rocker | |
| Degree of protection (IP) | IP30 | |
| Rated current | 1 A | |
| Rated voltage (AC) | 240 V | |
| Version | thermal | |
| Connection | faston plug 2.8 x 0.8 mm | |
| Rated voltage (DC) | 28 V | |
| Type of mounting | snap-in | |
| Product type | circuit breaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
