1180-01-1,5A | E-T-A
Circuit breaker, thermal, 1 pole, 1.5 A, 65 V (DC), 250 V (AC), faston plug 6.3 x 0.8 mm, DIN rail, IP40, 1180-01-1,5A
Unit Price (€ / pc.)
16.9694 € *
Standard delivery time from the manufacturer is: 6 Weeks
Device circuit breaker, 1180-01-1,5A, E-T-A

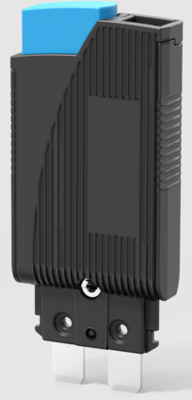

The 1180-01-1,5A is a miniaturised single pole thermal circuit breaker with reliable snap-acting and trip-free mechanism.
Features
- High dielectric strength
- High interrupting capacity
Applications
- Power distribution system
- Control cabinets
- Process control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | circuit breaker | |
| Version | thermal | |
| Pin number | 1 pole | |
| Rated current | 1.5 A | |
| Rated voltage (DC) | 65 V | |
| Rated voltage (AC) | 250 V | |
| Connection | faston plug 6.3 x 0.8 mm | |
| Type of mounting | DIN rail | |
| Actuator | push button | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
