104-PR-0,7A | E-T-A
Circuit breaker, thermal, 1 pole, 700 mA, 48 V (DC), 240 V (AC), solder connection, PCB mounting, IP40, 104-PR-0,7A
Unit Price (€ / pc.)
12.0309 € *
Standard delivery time from the manufacturer is: 6 Weeks

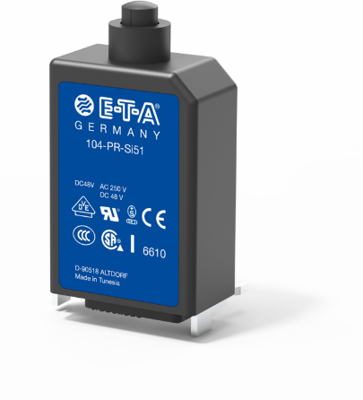

Thermal circuit breaker, 104-PR-0,7A, E-T-A
Single pole thermal circuit breaker in miniaturised design. A positively trip-free snap action mechanism ensures a reliable switching behaviour.
Applications
- Hand tools
- Domestic appliances
- Overcurrent protection of PCB conductor paths
- Marine vehicles
- Mobile homes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Actuator | push button | |
| Degree of protection (IP) | IP40 | |
| Rated current | 700 mA | |
| Rated voltage (AC) | 240 V | |
| Version | thermal | |
| Connection | solder connection | |
| Rated voltage (DC) | 48 V | |
| Type of mounting | PCB mounting | |
| Product type | circuit breaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
