REX12-TA1-107-DC24V-8A | E-T-A
Circuit breaker, 1 pole, 8 A, 18/30 VDC, DIN rail, REX12-TA1-107-DC24V-8A
Unit Price (€ / pc.)
43.6254 € *
Standard delivery time from the manufacturer is: 6 Weeks

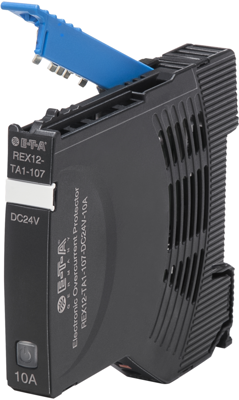

Electronic circuit protector, REX12-TA1-107-DC24V-8A, E-T-A
The REX12-TA1-107-DC24V-8A is a new electronic overcurrent protection, that combines flexibility with a compact design, and it is exactly tailored to the needs of machine and panel builder.
Features
- Combination of supply module and electronic circuit protector
- No accessories required for connecting the components
- Integral fail-safe element, adjusted to current rating
- Manual ON/OFF/reset momentary switch
- Connection via push-in terminals including orange press release buttons
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Product type | circuit breaker | |
| Degree of protection (IP) | IP30 | |
| Assembly | DIN rail | |
| Pin number | 1 pole | |
| Rated current | 8 A | |
| Rated Voltage | 18/30 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
