1610-92-6A | E-T-A
Automotive circuit breaker, 6 A, 12 V, green, (L x W x H) 20 x 6 x 30.4 mm, 1610-92-6A
Unit Price (€ / pc.)
11.7215 € *
Standard delivery time from the manufacturer is: 6 Weeks
Thermal automotive circuit breaker, 1610-92-6A, E-T-A
Miniaturized single-pole, cyclically tripping thermal circuit breaker with automatic reset designed for installation in automotive fuse blocks. Extends the benefits of circuit breaker performance and convenience to applications which are cost critical.
Applications
- Extra low voltage wiring systems on all types of vehicles and marine craft
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | automotive circuit breaker | |
| Breaking capacity | 50 A | |
| Rated current | 6 A | |
| Colour | green | |
| Rated voltage | 12 V | |

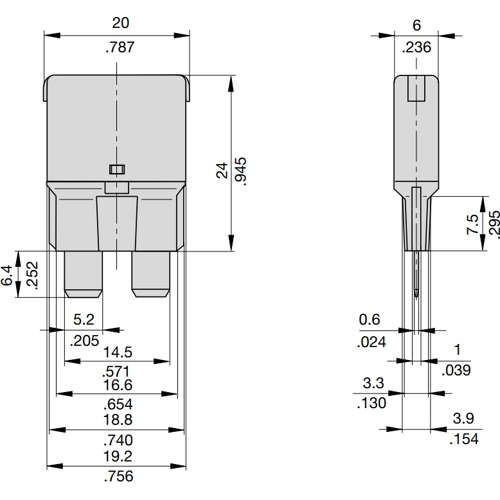

| Length | 20 mm | |
| Width | 6 mm | |
| Height | 30.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
