1610-21-15A | E-T-A
Automotive circuit breaker, 15 A, 28 V, blue, (L x W x H) 20 x 6 x 34.9 mm, 1610-21-15A
Unit Price (€ / pc.)
10.6981 € *
Standard delivery time from the manufacturer is: 6 Weeks

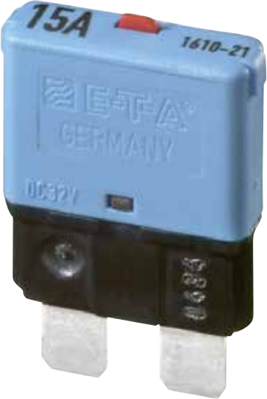

Device circuit breaker, 1610-21-15A, E-T-A
The 1610-21-15A is a single-pole, thermal circuit breaker that is used in motor vehicle and comes in a very narrow design. It is suitable for 12 V applications and is equiped with automatic reset and in the connection area is interchangeable with flat fuse links.
Features
- High breaking capacity
- High rated current range
Applications
- Fuse protection of wiring systems and devices in cars
- Extra-low voltage systems
- Trucks
- Buses
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | automotive circuit breaker | |
| Breaking capacity | 50 A | |
| Rated current | 15 A | |
| Colour | blue | |
| Rated voltage | 28 V | |
| Length | 20 mm | |
| Width | 6 mm | |
| Height | 34.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
