BT138-600E | DSI

Triac, 12 A, TO-220AB, DSI BT138-600E

Order No.: 18S6404
EAN: 4099879032027
MPN:
BT138-600E
Series: BTW
BT138-600E DSI Thyristoren,Diacs,Triacs,Quadracs

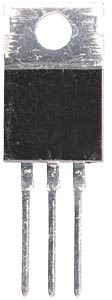

Image may differ
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
128.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
1.2852 €

Triac, BT138-600E, DSI

The BT138-600E is a planar passivated sensitive gate four quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.

Features

  • High blocking voltage capability
  • Direct triggering from low power drivers and logic ICs
  • Planar passivated for voltage ruggedness and reliability
  • Triggering in all four quadrants
  • Sensitive gate

Applications

  • General purpose motor controls
  • General purpose switching
Technical specifications
On-State Voltage 1.65 V
Gate trigger voltage 1.5 V
Gate trigger current 35 mA
Assembly THT
Enclosure TO-220AB
Rated current 12 A
Max. current 12 A
Version triac
min. operating temperature -40 °C
max. operating temperature 125 °C
max. holding current 30 mA
Number of pins 3
Logistics
Country of origin PH
Customs tariff number 85413000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
