BYV10-40 | DSI
Schottky rectifier diode, 40 V (RRM), 1 A, DO-41, BYV10-40
Discontinued
Unit Price (€ / pc.)
   0.8449 €  *
   Available: 215 pcs.
 Total Price:
  0.84 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 0.8449 €
 50 pcs.
 0.7259 €
 100 pcs.
 0.6545 €
 250 pcs.
 0.5831 €
 500 pcs.
 0.5712 €
  *incl. VAT plus shipping costs
  Subject to prior sale

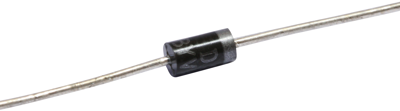

 Schottky diode, BYV10-40, DSI
Metal to silicon rectifier diode in glass case featuring very low forward voltage drop and fast recovery time, intended for low voltage switching mode power supply, polarity protection and high frequency circuits.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 125 °C | |
| Assembly | THT | |
| Number of diodes | 1 | |
| Junction temperature (min.) | -65 °C | |
| Forward Current | 1 A | |
| Version | schottky rectifier diode | |
| Enclosure | DO-41 | |
| Voltage V RRM (peak reverse voltage) | 40 V |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | TW |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
