0067521 | DOLD
Motor starter, 3 phase, 5 A, 480 V (AC), 0067521
Order No.: 90P0029
EAN: 4030641675219
MPN:
0067521
UG9410PM 3AC200-480V 5A 0-10s Modbus RTU
Unit Price (€ / pc.)
369.9353 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

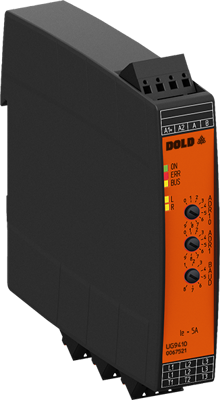

Smart motorstarter, 0067521, DOLD
The 0067521 is a smart motorstarter that can be used for softstart, softstop, reversing and protecting 3 phase asynchronous motors. By measuring the line current a thermal model is used to calculate the motor temperature, and in the case of overtemperature the motor is disconnected. In addition also a thermo switch can be used. The reversing is done via relays. The relays are switched without current flow, this provides long service life.
Features
- Modbus RTU-interface
- Reversing with relays without current, softstart, softstop with thyristor
- Galvanic separation between control circuit and power circuit
- Widely used measuring and automation protocol
- Simple and time-saving commissioning as well as user-friendly
- Operation through parameterization via modbus
- Hybrid relay combines benefits of relay technology with non-wearing semiconductor technology
- Pluggable clamps
Technical specifications
| Number of phases | 3 | |
| Version | motor starter | |
| max. operating temperature | 65 °C | |
| min. operating temperature | 0 °C | |
| Rated voltage (AC) | 480 V | |
| Rated current | 5 A | |
| Degree of protection (IP) | IP20/IP40 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
