0050957 | DOLD
Soft starter, 11 kW, 25 A, 480 V (AC), 0050957
Order No.: 90P0091
EAN: 4030641509576
MPN:
0050957
BL9025 3AC200-480V 50/60Hz 11,0kW
Unit Price (€ / pc.)
552.6955 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

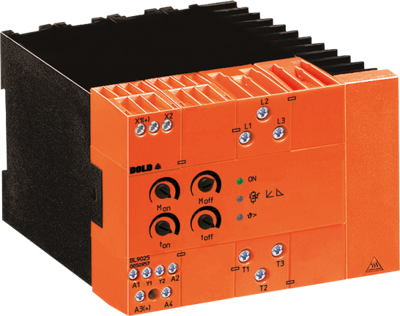

Softstarter, 0050957, DOLD
The 0050957 is a softstarter designed to enable 1-phase or 3-phase induction motors to start smoothly. This product slowly ramps up the current on two phases, therefore allowing the motor torque to build up slowly. This reduces the mechanical stress on the machine, prevents damage to conveyed material and limits the start current. When the motor is up to full speed the semiconductors in this is bridged to prevent internal power losses and heat build up.
Features
- Softstart and softstop function
- Acceleration and deceleration time resp. starting and switch-off torque are separately adjustable
- Wide input voltage range of the power semiconductors
- Integrated overtemperature monitoring
- LED indication
Applications
- Motor with gear, belt or chain drive
- Fans, pumps, conveyor systems, compressors
- Packaging machines, door-drives
- Start current limiting on 3-phase motors
Technical specifications
| Version | soft start device | |
| Power | 11 kW | |
| max. operating temperature | 40 °C | |
| min. operating temperature | 0 °C | |
| Rated voltage (AC) | 480 V | |
| Rated current | 25 A | |
| Degree of protection (IP) | IP20/IP40 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
