0031885 | DOLD
Emergency stop module, 3 Form A (N/O) + 1 Form B (N/C), 230 VAC, 0031885
Order No.: 90P0072
EAN: 4030641318857
MPN:
0031885
BN5983.53 AC50/60Hz 230V
Unit Price (€ / pc.)
512.4973 € *
Standard delivery time from the manufacturer is: 2 Weeks

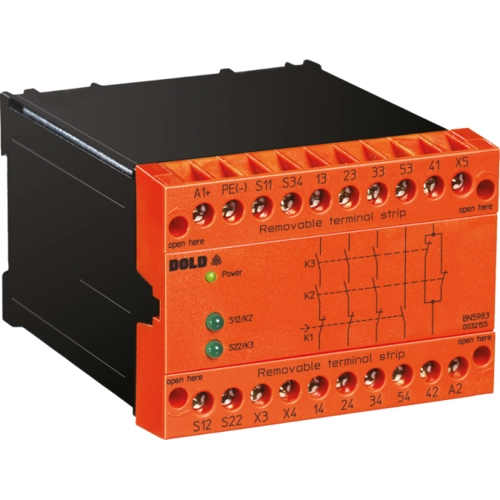

Emergency stop module, 0031885, DOLD
The 0031885 is an emergency stop module for monitoring of safety gates with emergency stop circuits on machine.
Features
- Line fault detection at On pushbutton
- Integrated short-circuit and overvoltage protection
- Removable terminal strips
- Optionally cross fault detection in emergency stop control circuit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | emergency stop module | |
| Contact type | 3 Form A (N/O) + 1 Form B (N/C) | |
| Input voltage AC | 230 VAC | |
| Type of Use | monitoring of sliding protection grilles | |
| Assembly | DIN rail | |
| Width | 100 mm | |
| Height | 74 mm | |
| Depth | 121 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
