0056453 | DOLD
Motor protection relay, 2 Form C (NO/NC), 0056453
Order No.: 90P0195
EAN: 4030641564537
MPN:
0056453
MK9163N.12/110 ATEX AC50/60Hz 230V
Unit Price (€ / pc.)
120.1305 € *
Standard delivery time from the manufacturer is: 2 Weeks

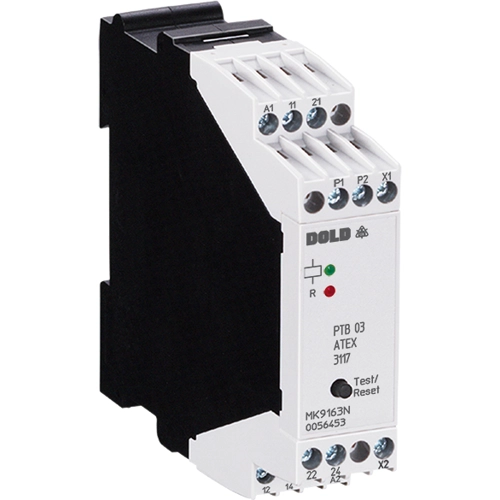

Thermistor motor protection relay, 0056453, DOLD
The 0056453 is a thermistor motor protection relay used to protect against thermal overload of motors caused by high switching frequency, havy duty starting, phase failure on one phase, bad cooling, high ambient temperature. Also the temperature monitoring of bearings, transmissions, oil and cooling liquids is possible. Up to six thermistors can be connected via the input.
Features
- De-energized on trip
- Output with 2 changeover contacts
- Reliable temperature monitoring of motors
- Rapid fault location
Applications
- Emergency stop circuits on machines
- Monitoring of position switches on a safety gate
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Degree of protection (IP) | IP20/IP40 | |
| Rated voltage | 230 V | |
| Assembly | DIN rail | |
| Version | motor protection relay | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
