0054097 | DOLD

Motor protection relay, 2 Form C (NO/NC), 230 VAC, 0054097

Order No.: 90P0084
EAN: 4030641540975
MPN:
0054097
MK9163N.12/100 AC50/60Hz 230V
0054097 DOLD Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
112.9191 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
112.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
112.9191 €

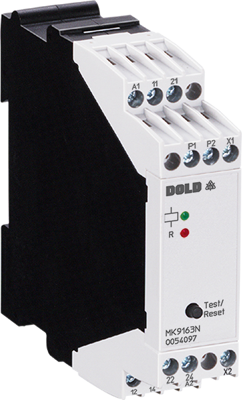

Thermistor motor protection relay, 0054097, DOLD

The 0054097 is a thermistor motor protection relay used to protect against thermal overload of motors caused by high switching frequency, havy duty starting, phase failure on one phase, bad cooling, high ambient temperature. Also the temperature monitoring of bearings, transmissions, oil and cooling liquids is possible. Up to six thermistors can be connected via the input.

Features

  • De-energized on trip
  • Output with 2 changeover contacts
  • Reliable temperature monitoring of motors
  • Rapid fault location
Technical specifications
Degree of protection (IP) IP20/IP40
Assembly DIN rail
Rated current 1.5 A
Version motor protection relay, 2 Form C (NO/NC), 230 VAC
Connection screw connection
Rated voltage 230 V
Logistics
Country of origin DE
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
