0064092 | DOLD
Extension module, 5 Form A (N/O) + 1 Form B (N/C), 24 V AC/DC, 0064092
Order No.: 90P0071
EAN: 4030641640927
MPN:
0064092
LG5929.60/61 AC/DC24V
Unit Price (€ / pc.)
201.7883 € *
Standard delivery time from the manufacturer is: 2 Weeks

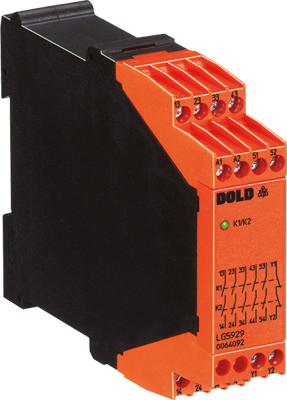

Extension module, 0064092, DOLD
The 0064092 is a extension module that offers safe and reliable contact multiplication and re-enforcment for safety modules with monitoring of the feedback circuit. Safe semiconductor outputs can be extended by relay output contacts. The extension module has forcibly guided contacts and can be delivered with different contact arrangements.
Features
- Control from semiconductor safety outputs
- Redundant and forcibly guided contacts
- LED indication for operation
- Removeable terminal strips
Applications
- Safety contact multiplication
Technical specifications
| Depth | 121 mm | |
| Assembly | DIN rail | |
| Width | 22.5 mm | |
| Height | 90 mm | |
| Control Voltage | 24 V AC/DC | |
| Version | extension module | |
| Contact type | 5 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
