Solder fume extraction LDA 1
Unit Price (€ / pc.)
90.2020 € *
Available: 3 pcs.
Total Price:
90.20 € *
Price list
Quantity
Price per unit*
1 pcs.
90.2020 €
5 pcs.
84.7875 €
15 pcs.
81.5388 €
50 pcs.
77.9331 €
150 pcs.
74.6844 €
*incl. VAT plus shipping costs
Subject to prior sale

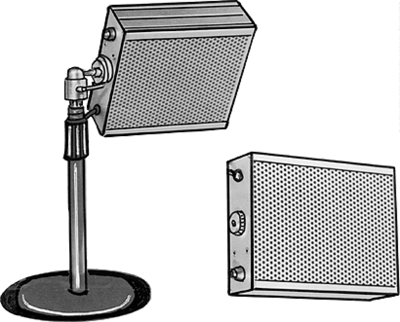

Solder fume filters, type Distelkamp LDA 1
Proven version with rugged aluminum housing and perforated front panel which cannot be damaged even by unintentional contact with hot soldering tips. The absorber can be used either as a bench device or on a tripod that can be ordered separately (with round table foot, height and angle adjustment).Power supply: 220/240 V/18 W. Air flow rate:170 m³/h. Operating noise: 40 dBA. Housing:anodized aluminum. Dimensions in mm: 150 x 140 x 55. The equipment is compliant with VDE, GS and UL standards. Supplied with a pack of activated carbon filters (6 pieces).
Type: LDA1, solder fume absorber
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 18 W | |
| Voltage | 220-240 V | |
| Volume flow | 170 m³/h | |
| Sound pressure level | 40 db | |
| Length | 150 mm | |
| Width | 55 mm | |
| Height | 140 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
