HMI043WM-42ATCS | DISPLAY VISIONS
TFT display, 4.3"/10.9 cm, 480 x 272, HMI043WM-42ATCS
Order No.: 73S2303
MPN:
HMI043WM-42ATCS
Unit Price (€ / pc.)
249.3288 € *
Available: 0 pcs.
Leadtime: 1 Week **

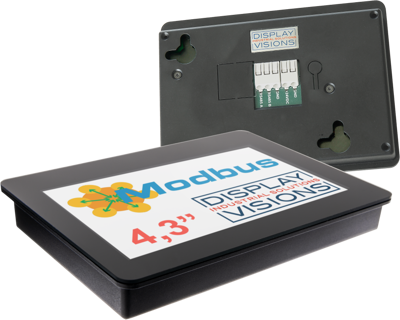

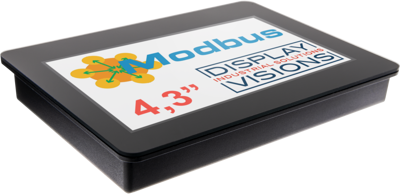

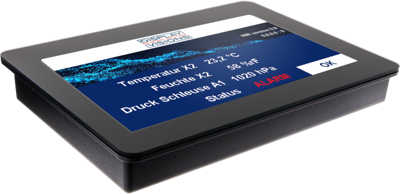

Modbus Display WiFi, HMI043WM-42ATCS, DISPLAY VISIONS
Brilliant 4.3" Modbus display with touch functionality for ModbusTCP and ModbusRTU. WiFi, RS-485. Built-in intelligence with memory and sufficient capacity even for complex graphics. The address range is freely selectable. Housing for wall mounting or integration into a front panel. Power supply 6~30V=. The display supports communication with over 20 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, Allen Bradley, Mitsubishi FX, Beckhoff, easyE4 and many more. Free WYSIWYG editor "HMI-Designer" for Windows for creating individual screen pages.
Technical specifications
| Product type | TFT display | |
| min. operating temperature | -20 °C | |
| Viewing range (height) | 53.9 mm | |
| Resolution | 480 x 272 | |
| screen diagonal | 4.3"/10.9 cm | |
| Viewing area (width) | 95 mm | |
| max. operating temperature | 60 °C | |
| Shell size | 114 x 84 x 18.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85312040 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
