EA UNITFT050-ATC | DISPLAY VISIONS
TFT display, 5"/12.7 cm, with touch function, 800 x 480, EA UNITFT050-ATC
Unit Price (€ / pc.)
517.1621 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
517.16 € *
Price list
Quantity
Price per unit*
1 pcs.
517.1621 €
5 pcs.
499.9309 €
*incl. VAT plus shipping costs
Subject to prior sale

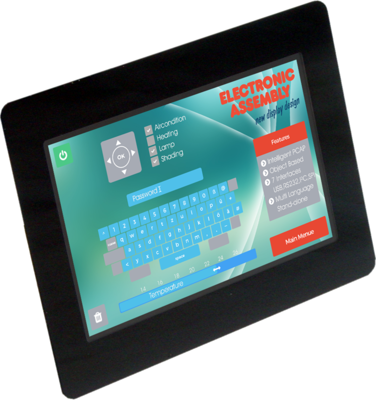

TFT graphic module, EA UNITFT050-ATC, DISPLAY VISIONS
The DISPLAY VISIONS EA uniTFT is a multifunctional 5" TFT HMI. It has a built-in RTC including a battery backup. The representation on the display is effected based on the commands given by the user. Every item on the display is an independent object and can be manipulated.
Features
- 16 digital I/O on-board and expandable upto 125
- 4 analogue inputs
- PWM output can be generated
- MicroSD card used for pictures, fonts and macros
Technical specifications
| Product type | TFT display | |
| Version | with touch function | |
| Resolution | 800 x 480 | |
| screen diagonal | 5"/12.7 cm | |
| Viewing range (height) | 111.8 mm | |
| Viewing area (width) | 68.8 mm | |
| Technology | TFT - transmissive | |
| Shell size | 124 x 78.5 x 13.8 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85312095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
