EA TFT070-84ATS | DISPLAY VISIONS

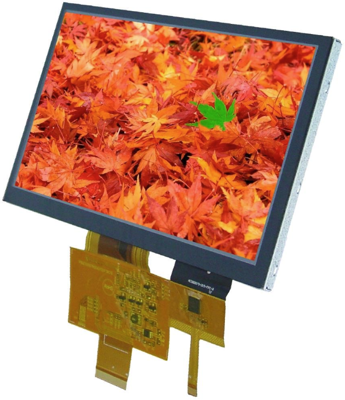

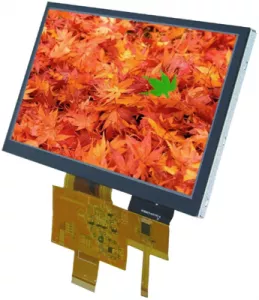

TFT display, 7"/17.8 cm, 800 x 480, EA TFT070-84ATS
Order No.: 73S2391
MPN:
EA TFT070-84ATS
Unit Price (€ / pc.)
125.7592 € *
Standard delivery time from the manufacturer is: 1 Week
TFT display, EA TFT070-84ATS, DISPLAY VISIONS
This technical specification applies to 7.0’ color TFT-LCD panel. The 7.0’ color TFT-LCD panel is designed for camcorder, digital camera application and other electronic products which require high quality flat panel displays. This module follows RoHS.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 800 x 480 | |
| Viewing area (width) | 154.08 mm | |
| Viewing range (height) | 85.92 mm | |
| screen diagonal | 7"/17.8 cm | |
| Technology | TFT - transmissive | |
| max. operating temperature | 70 °C | |
| Shell size | 165 x 100 x 7.475 mm | |
| Product type | TFT display | |
| min. operating temperature | -20 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
