EA TFT024-23ATNN | DISPLAY VISIONS
TFT display, 2.4"/6.1 cm, 240 x 320, EA TFT024-23ATNN
Order No.: 73S2371
MPN:
EA TFT024-23ATNN
Unit Price (€ / pc.)
35.8785 € *
Standard delivery time from the manufacturer is: 1 Week
TFT display, EA TFT024-23ATNN, DISPLAY VISIONS

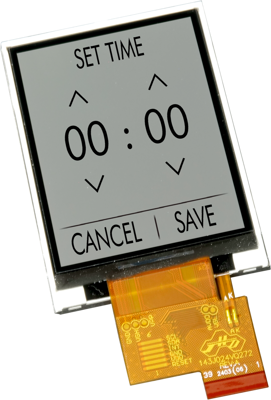

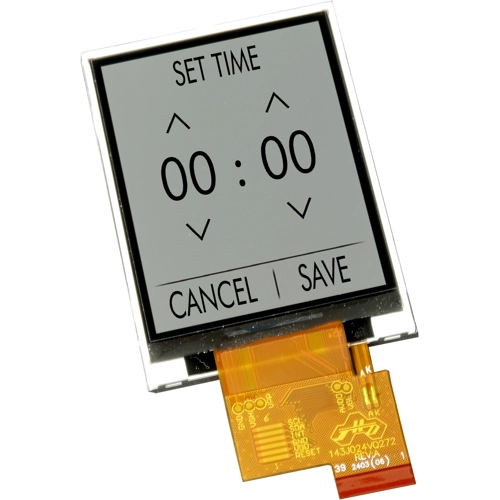

2.4" TFT display 240 x 320 x 3 pixels especially for outdoor use and for low-power devices (handheld). With SPI and 8-/16-bit data bus and 16-bit RGB interface. Controller ST7789V on board. Long-term available industrial quality, readable even without illumination in direct sunlight. Only one flex cable with all connections in 0.3 mm pitch. The wide operating temperature range extends from -20..+70°C. With switchable LED lighting.
Technical specifications
| Resolution | 240 x 320 | |
| Technology | TFT - transflective | |
| min. operating temperature | -20 °C | |
| Product type | TFT display | |
| Viewing range (height) | 55 mm | |
| Viewing area (width) | 40 mm | |
| max. operating temperature | 70 °C | |
| Shell size | 42.7 x 60.3 x 3.1 mm | |
| screen diagonal | 2.4"/6.1 cm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85312040 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
