EA TFT009-81AINN | DISPLAY VISIONS

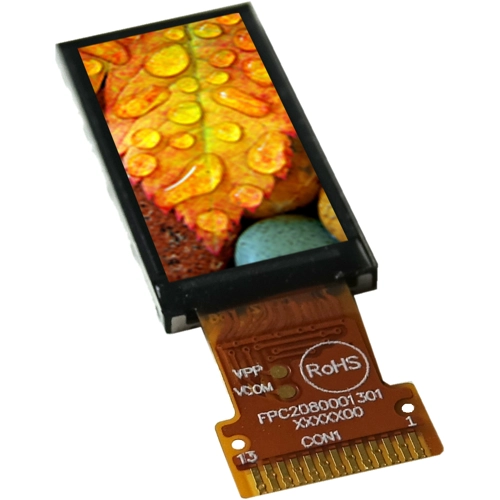

TFT display, 0.96"/2.4 cm, 80 x 160, EA TFT009-81AINN

Order No.: 73S2367
MPN:
EA TFT009-81AINN
EA TFT009-81AINN DISPLAY VISIONS TFT Displays
Image may differ
Unit Price (€ / pc.)
9.8056 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.8056 €

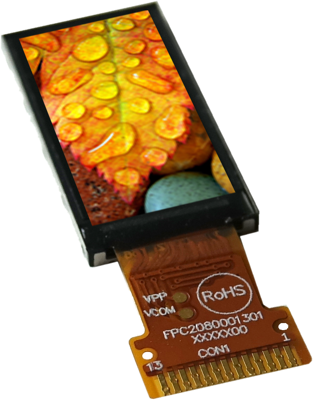

Micro TFT display, EA TFT009-81AINN, DISPLAY VISIONS

0.96" micro TFT display 80 x 160 x 3 dots in IPS. With SPI (3/4 wire) interface. Controller ST7735S on board. Long-term available for industrial applications. Only one FPC cable for direct soldering to pcb (via stamp soldering process). The wide operating temperature range is -20..+70°C. Bright white LED backlight integrated.

Technical specifications
Product type TFT display
min. operating temperature -20 °C
Viewing range (height) 22.27 mm
Resolution 80 x 160
screen diagonal 0.96"/2.4 cm
Viewing area (width) 11.4 mm
max. operating temperature 70 °C
Shell size 13.5 x 27.95 x 1.54 mm
Logistics
Country of origin CN
Customs tariff number 85319000
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
