EA HMI070LU-16ATCS | DISPLAY VISIONS
TFT display, 7"/17.8 cm, 1024 x 600, EA HMI070LU-16ATCS
Order No.: 73S2306
MPN:
EA HMI070LU-16ATCS
Unit Price (€ / pc.)
382.9896 € *
Available: 0 pcs.
Leadtime: 1 Week **
HMI w.housing, LAN, EA HMI070LU-16ATCS, DISPLAY VISIONS

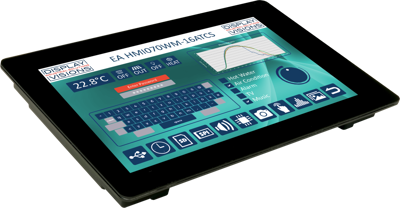

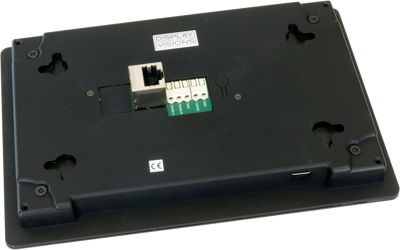

Brilliant 7" operating unit in wall/recessed housing. LAN, WIFI, RS-485. With touch functionality and integrated intelligence and memory - outstanding graphics performance even for complex screen designs. In housing for wall mounting or integration into a front panel. Power supply 6~30V=. Proprietary software protocol. Free WYSIWYG editor "HMI-Designer" for Windows to create customised screen pages.
Technical specifications
| Product type | TFT display | |
| min. operating temperature | -20 °C | |
| Viewing range (height) | 87.9 mm | |
| Resolution | 1024 x 600 | |
| screen diagonal | 7"/17.8 cm | |
| Viewing area (width) | 156.2 mm | |
| max. operating temperature | 60 °C | |
| Shell size | 190 x 125 x 33.7 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85312040 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
