EA HMI070LM-16ATCS | DISPLAY VISIONS

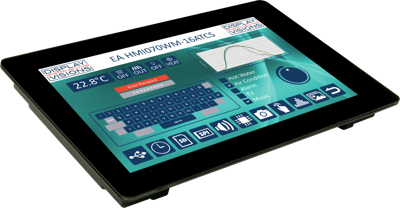

TFT display, 7"/17.8 cm, 1024 x 600, EA HMI070LM-16ATCS
Order No.: 73S2305
MPN:
EA HMI070LM-16ATCS
Unit Price (€ / pc.)
382.9896 € *
Available: 0 pcs.
Leadtime: 1 Week **
Modbus Display LAN, EA HMI070LM-16ATCS, DISPLAY VISIONS

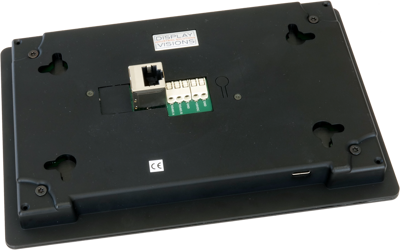

Brilliant 7" Modbus display with touch functionality for ModbusTCP and ModbusRTU. LAN, WiFi, RS-485. Built-in intelligence with memory and sufficient capacity even for complex graphics. The address range is freely selectable. Housing for wall mounting or integration into a front panel. Power supply 6~30V=. The display supports communication with over 20 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, Allen Bradley, Mitsubishi FX, Beckhoff, easyE4 and many more. Free WYSIWYG editor "HMI-Designer" for Windows for creating individual screen pages.
Technical specifications
| Product type | TFT display | |
| min. operating temperature | -20 °C | |
| Viewing range (height) | 87.9 mm | |
| Resolution | 1024 x 600 | |
| screen diagonal | 7"/17.8 cm | |
| Viewing area (width) | 156.2 mm | |
| max. operating temperature | 60 °C | |
| Shell size | 190 x 125 x 33.7 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85312040 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
