EA HMI043LU-42ATCS | DISPLAY VISIONS
TFT display, 4.3"/10.9 cm, 480 x 272, EA HMI043LU-42ATCS
Order No.: 73S2302
MPN:
EA HMI043LU-42ATCS
Unit Price (€ / pc.)
269.892 € *
Available: 0 pcs.
Leadtime: 1 Week **

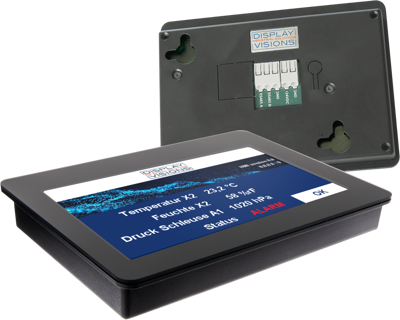

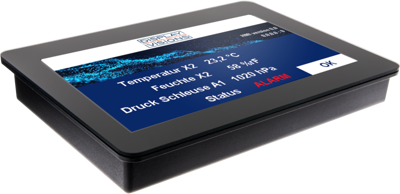

HMI w.housing, LAN, EA HMI043LU-42ATCS, DISPLAY VISIONS
Brilliant 4.3" operating unit in wall/recessed housing. LAN, WIFI, RS-485. With touch functionality and integrated intelligence and memory - outstanding graphics performance even for complex screen designs. In housing for wall mounting or integration into a front panel. Power supply 6~30V=. Proprietary software protocol. Free WYSIWYG editor "HMI-Designer" for Windows to create customised screen pages.
Technical specifications
| Product type | TFT display | |
| min. operating temperature | -20 °C | |
| Viewing range (height) | 53.9 mm | |
| Resolution | 480 x 272 | |
| screen diagonal | 4.3"/10.9 cm | |
| Viewing area (width) | 95 mm | |
| max. operating temperature | 60 °C | |
| Shell size | 114 x 84 x 30.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85312040 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
