EA EDIPTFT57-BTP | DISPLAY VISIONS

TFT display, 5.7"/14.5 cm, with touch function, 640 x 480, EA EDIPTFT57-BTP

Order No.: 73S2288
MPN:
EA EDIPTFT57-BTP

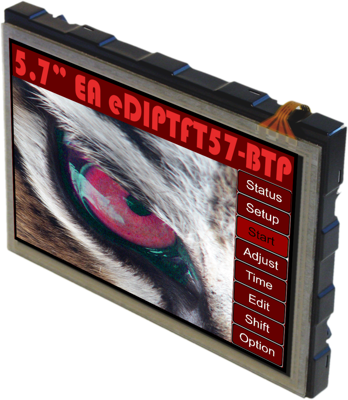

EA EDIPTFT57-BTP DISPLAY VISIONS TFT Displays Image 1

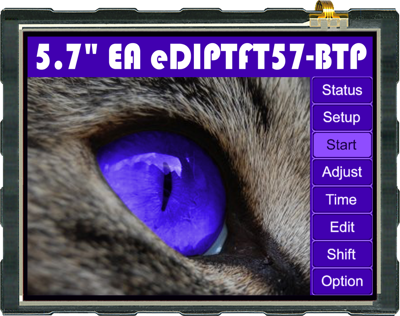

EA EDIPTFT57-BTP DISPLAY VISIONS TFT Displays Image 2
Image may differ
Unit Price (€ / pc.)
591.192 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
591.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
591.192 €

Intelligent TFT color display , EA EDIPTFT57-BTP, DISPLAY VISIONS

Intelligent TFT color display in IPS technology with 640 x 480 dots resolution (5.7" VGA). Interface RS-232, SPI and I²C bus. With pins (1/10" pitch) for direct soldering into a pcb or standard socket. Character sets and graphic functions are already built-in. With FLASH PROM for individual pictures, text and complete screen pages. Mounting is done via integrated pin header or with mounting clips (included). As an accessory there is a mounting bezel made of black anodized aluminium available. With integrated touch panel (fully supported by software).

Technical specifications
Viewing area (width) 117 mm
Shell size 146.4 x 107.2 x 13.4 mm
Product type TFT display
Version with touch function
min. operating temperature -20 °C
max. operating temperature 70 °C
Resolution 640 x 480
screen diagonal 5.7"/14.5 cm
Viewing range (height) 88.2 mm
Logistics
Country of origin DE
Customs tariff number 85312095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
