EA EDIPTFT43-ATP | DISPLAY VISIONS
TFT display, 4.3"/10.9 cm, 480 x 272, EA EDIPTFT43-ATP
Unit Price (€ / pc.)
438.3008 € *
Available: 18 pcs.
Total Price:
438.30 € *
Price list
Quantity
Price per unit*
1 pcs.
438.3008 €
5 pcs.
405.8257 €
10 pcs.
382.8706 €
25 pcs.
361.2007 €
50 pcs.
343.9933 €
*incl. VAT plus shipping costs
Subject to prior sale

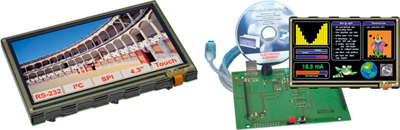

TFT graphic module, EA EDIPTFT43-ATP, DISPLAY VISIONS
The EA uniTFT series provides sophisticated graphical functions and intuitive menu control with its built-in instruction set. Thanks to the integrated instruction set and the Windows design software uniTFTDesigner, not only electronics specialists, but also experts in the field of design and user guidance are able to create the entire HMI.
The display modules are immediately ready for operation with 3.3 V, controlled via the built-in serial interfaces RS232, SPI, I²C or USB.
Features
- High contrast LCD-TFT display 480x272, DIL
- Full colour
- LED back light
- With touch panel
- Operating temperature range: -20 to +70°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | TFT display | |
| Resolution | 480 x 272 | |
| screen diagonal | 4.3"/10.9 cm | |
| Viewing range (height) | 57.5 mm | |
| Viewing area (width) | 98.7 mm | |
| Technology | TFT - transmissive | |
| Shell size | 107 x 71 x 12 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
