EA EDIPTFT43-ATC | DISPLAY VISIONS

TFT display, 4.3"/10.9 cm, with touch function, 480 x 272, EA EDIPTFT43-ATC

Order No.: 73S2286
MPN:
EA EDIPTFT43-ATC

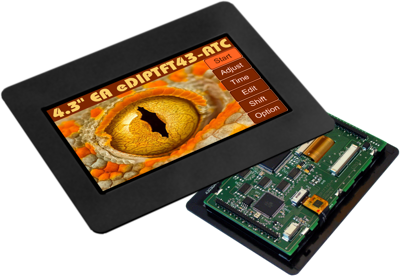

EA EDIPTFT43-ATC DISPLAY VISIONS TFT Displays
Image may differ
Unit Price (€ / pc.)
383.9654 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
383.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
383.9654 €

Intelligent TFT color display , EA EDIPTFT43-ATC, DISPLAY VISIONS

Intelligent TFT color display with 480 x 272 dots resolution (4.3"). Interface RS-232, SPI and I²C bus. With pins (1/10" pitch) for direct soldering into a pcb or standard socket. Character sets and graphic functions are already built-in. With FLASH PROM for individual pictures, text and complete screen pages. Mounting is done via integrated pin header or with mounting clips (included). As an accessory there is a mounting bezel made of black anodized aluminium available. With integrated PCAP touch panel (fully supported by software).

Technical specifications
Shell size 120 x 92 x 13.5 mm
Product type TFT display
max. operating temperature 70 °C
screen diagonal 4.3"/10.9 cm
Version with touch function
Resolution 480 x 272
Viewing range (height) 57.5 mm
Viewing area (width) 98.7 mm
min. operating temperature -20 °C
Logistics
Country of origin DE
Customs tariff number 85312095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
