EA EDIPTFT43-A | DISPLAY VISIONS
TFT display, 4.3"/10.9 cm, 480 x 272, EA EDIPTFT43-A
Unit Price (€ / pc.)
350.0504 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
350.05 € *
Price list
Quantity
Price per unit*
1 pcs.
350.0504 €
5 pcs.
336.7819 €
10 pcs.
329.6181 €
*incl. VAT plus shipping costs
Subject to prior sale

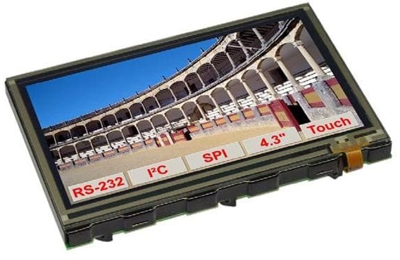

TFT graphic module, EA EDIPTFT43-A, DISPLAY VISIONS
The EA eDIP series of displays are the world’s first displays with integrated intelligence. In addition to a variety of integrated fonts that can be used with pixel accuracy, they offer a whole range of sophisticated graphics functions.
The displays are ready for operation immediately with an operating voltage of 5V. They are controlled via one of the 3 integrated interfaces: RS-232, SPI or I²C. The displays are “programmed” by means of high-level language-type graphics commands. There is no longer any need for the time-consuming programming of character sets and graphics rou
Features
- High contrast LCD-TFT display 480x272, DIL
- Full colour
- LED back light
- Operating temperature range: -20 to +70°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 480 x 272 | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Technology | TFT - transmissive | |
| Shell size | 107 x 71 x 12 mm | |
| Product type | TFT display | |
| screen diagonal | 4.3"/10.9 cm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
