EA W128064-XALG | DISPLAY VISIONS

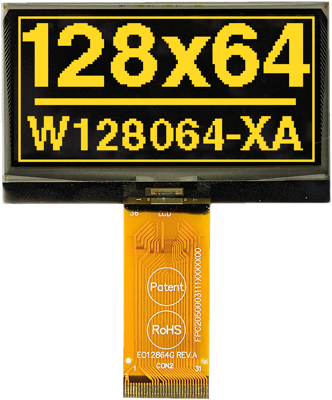

OLED display, 128 x 64 dots, yellow, DISPLAY VISIONS EA W128064-XALG
Order No.: 73S2404
MPN:
EA W128064-XALG
Unit Price (€ / pc.)
41.2930 € *
Standard delivery time from the manufacturer is: 1 Week

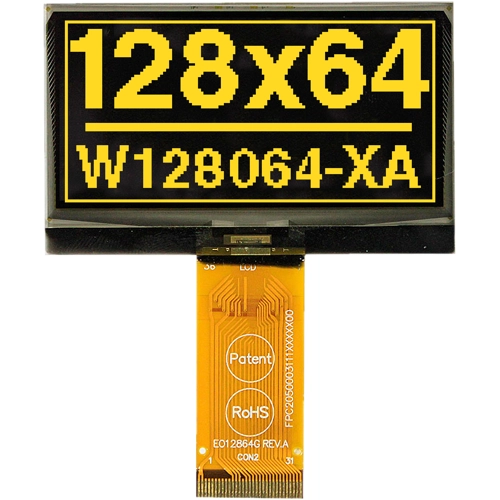

Graphic OLED, EA W128064-XALG, DISPLAY VISIONS
Graphic OLED in yellow with 128 x 64 dots. Extreme wide temperature range and fast response time (typ. 10µs even at -40°C). The display provides a wide viewing angle with nearly 180°. Connection is easyly done via flex cable (31 pins). As an Interface the display provides SPI, I²C and parallel 8-bit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 128 x 64 dots | |
| Viewing area (width) | 57 mm | |
| Viewing range (height) | 28.9 mm | |
| Technology | OLED | |
| max. operating temperature | 80 °C | |
| Height | 37 mm | |
| type of backlight | OLED | |
| IC controller/driver | SSD1309 compatible | |
| Width | 60.5 mm | |
| min. operating temperature | -40 °C | |
| Background color | yellow | |
| Thickness | 2.15 mm | |
| MPU interface | 8-Bit, I²C, SPI |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
