EA OLEDM128-6LGA | DISPLAY VISIONS
Graph. OLED 128x64 w.PinsAH
Order No.: 73S2343
MPN:
EA OLEDM128-6LGA
Unit Price (€ / pc.)
36.0451 € *
Standard delivery time from the manufacturer is: 1 Week

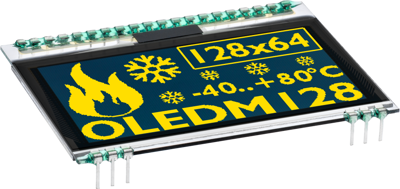

Graphic OLED, EA OLEDM128-6LGA, DISPLAY VISIONS
Graphic OLED in yellow with 128 x 64 dots. With pins for connection, pitch 2.54 mm. Wide temperature range from -40 up to +80°C and fast display (typ. 10µs even at -40°C). The display provides an extremely wide viewing angle of nearly 180°. Also mounting is done with the help of the pins.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| type of backlight | OLED | |
| Viewing area (width) | 51 mm | |
| min. operating temperature | -40 °C | |
| Display | 128 x 64 character | |
| Background color | yellow | |
| Thickness | 2.1 mm | |
| max. operating temperature | 80 °C | |
| Viewing range (height) | 31 mm | |
| Width | 55 mm | |
| IC controller/driver | SSD1306 compatible | |
| Height | 43 mm | |
| Technology | OLED | |
| MPU interface | I²C, SPI |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
