EA OLEDL128-6LGA | DISPLAY VISIONS

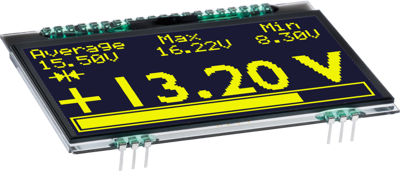

OLED display, 128 x 64 dots, yellow, DISPLAY VISIONS EA OLEDL128-6LGA
Unit Price (€ / pc.)
42.1736 € *
Standard delivery time from the manufacturer is: 1 Week

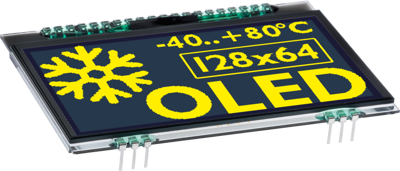

Graphic OLED, EA OLEDL128-6LGA, DISPLAY VISIONS
Graphic OLED in yellow with 128 x 64 dots. With pins for connection, pitch 2.54 mm. Wide temperature range from -40 up to +80°C and fast display (typ. 10µs even at -40°C). The display provides an extremely wide viewing angle of nearly 180°. Also mounting is done with the help of the pins.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 64 mm | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -40 °C | |
| Height | 51 mm | |
| Technology | OLED | |
| Thickness | 2.1 mm | |
| IC controller/driver | SSD1309 compatible | |
| MPU interface | I²C, SPI | |
| Width | 68 mm | |
| Display | 128 x 64 dots | |
| Background color | yellow | |
| Viewing range (height) | 37 mm | |
| type of backlight | OLED |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
