EA OLEDL128-6GGA | DISPLAY VISIONS

EA OLEDL128-6GGA

Order No.: 73S2181
EAN: 4099879007643
MPN:
EA OLEDL128-6GGA
Series: EA OLED

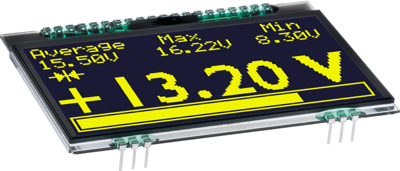

EA OLEDL128-6GGA DISPLAY VISIONS OLED Displays Image 1

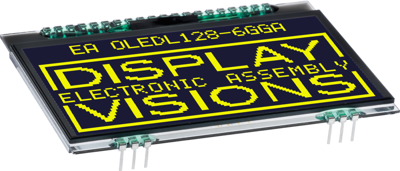

EA OLEDL128-6GGA DISPLAY VISIONS OLED Displays Image 2

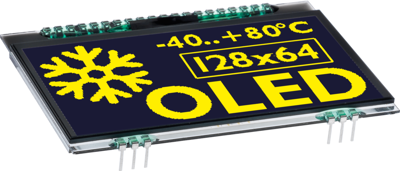

EA OLEDL128-6GGA DISPLAY VISIONS OLED Displays Image 3
Image may differ
Unit Price (€ / pc.)
54.0855 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
54.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
54.0855 €
Graphic OLED in yellow with 128x64 dots. With pins for connection, pitch 2.54mm. Wide temperature range from -40 up to +80°C and fast display (typ. 10µs even at -40°C). The display provides an extreme wide viewing angle of near 180°. Also mounting is done with the help of the pins. With protection glass.
Technical specifications
Filter Property Value
Background color yellow/green
Viewing area (width) 64 mm
Thickness 3.3 mm
Technology OLED
Width 68 mm
Height 51 mm
IC controller/driver SSD1309 compatible
Shell size 68 x 51 mm
min. operating temperature -40 °C
Lifetime 20.000/50.000 hours
MPU interface I²C, SPI
max. operating temperature 80 °C
type of backlight OLED
Display 128 x 64 character
Light intensity min. 80 cd
Light intensity typ. 100 cd
Viewing range (height) 37 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85312095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
