EA SER202-NLW | DISPLAY VISIONS

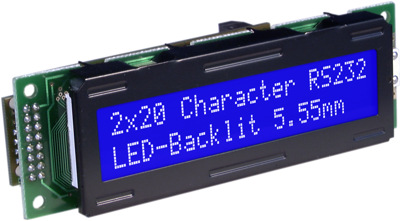

RS-232 text display, 2 x 20 character, STN, viewing area: 82.2 x 18.6 mm, EA SER202-NLW
Unit Price (€ / pc.)
170.289 € *
Standard delivery time from the manufacturer is: 1 Week
LCD-Module, EA SER162-N3LW, DISPLAY VISIONS
sFEATURES
- 32 Different Sizes of Displays Available (1x8 Up to 16x40)
- 7 Displays With Low Power White Led-Backlight
- High Contrast Supertwist LCD
- Automatic Line Management
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Background color | blue | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Viewing range (height) | 18.6 mm | |
| type of backlight | white | |
| Height | 37 mm | |
| Width | 116 mm | |
| Viewing area (width) | 82.2 mm | |
| Technology | STN | |
| Display | 2 x 20 character | |
| Thickness | 26 mm | |
| MPU interface | RS-232 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
