EA E202-CNLW | DISPLAY VISIONS
LCD text display, 2 x 20 character, STN, viewing area: 149 x 31 mm, EA E202-CNLW
Order No.: 73S2278
MPN:
EA E202-CNLW
Unit Price (€ / pc.)
95.0096 € *
Standard delivery time from the manufacturer is: 1 Week

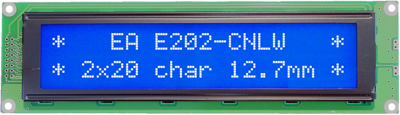

Large digit LCD, EA E202-CNLW, DISPLAY VISIONS
Large digit 2 line display with 12.7 mm digit height and 20 characters. blue / white. With LEDbacklight. Compatible to industry standard HD44780 / ST7066 with 4-/8-Bit interface.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 2 x 20 character | |
| Viewing area (width) | 149 mm | |
| Viewing range (height) | 31 mm | |
| Technology | STN | |
| max. operating temperature | 70 °C | |
| Height | 54 mm | |
| type of backlight | LED - white | |
| IC controller/driver | HD44780 compatible | |
| Character height | 12.7 mm | |
| Width | 190 mm | |
| min. operating temperature | -20 °C | |
| Background color | blue | |
| Thickness | 12 mm | |
| MPU interface | 4-Bit, 8-Bit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
