EA DOGS102N-6 | DISPLAY VISIONS

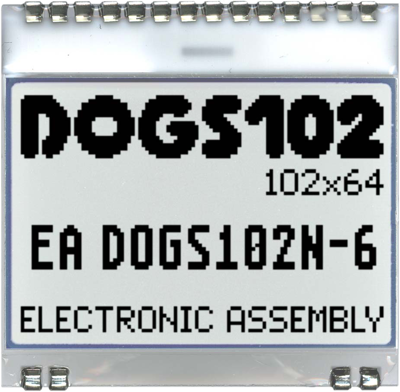

Graphic display, FSTN, viewing area: 36 x 25 mm, EA DOGS102N-6
Unit Price (€ / pc.)
14.1729 € *
Available: 1 pcs.
LCD-Module, EA DOGS102W-6, DISPLAY VISIONS
FEATURES
- Led Backlighting 5 mA to 80 mA
- No Additional Voltages Required
- No Mounting Required: Simply Solder On to Pcb
- Operating Temperature Range -20°C to +70°C (Storage -30°C to +80°C)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 36 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 41 mm | |
| Technology | FSTN | |
| Thickness | 2 mm | |
| IC controller/driver | UC1701 compatible | |
| MPU interface | SPI | |
| Width | 39 mm | |
| Background color | white | |
| Viewing range (height) | 25 mm | |
| type of backlight | without |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
