EA DOGM132W-5 | DISPLAY VISIONS

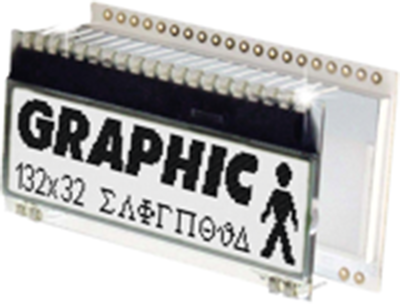

Graphic display, 132 x 32 character, FSTN, viewing area: 51 x 15 mm, EA DOGM132W-5
LCD graphic displays, type DISPLAY VISIONS DOGM../DOGL.
High-contrast supertwist LCD with 15 µm DOTGAP and controller with SPI interface (4-wire). Optional LED backlights in different colors for approximately 20 designs; Operating temperatures: –20 to +70 °C. Dimensions: DOGM132.. 55 x 31 x 2.0 mm (5.8 mm with backlight), DOGM128.. 55 x 46 x 2.0 mm (5.6 mm with backlight), DOGL128.. 68 x 51 x 2.8 mm (6.5 mm with backlight).
Graphic displays, type DOGM..W../DOGL..W.
Technology: FSTN positive, transflective, suitable for use with/without backlight element, readings can be taken without backlight. Display color: black on white (no backlight), black on backlight color. Recommended lighting: white, blue, RGB.
Technical attributes (type, pixels, viewing window dimensions): EA DOGM132W–5, 132 x 32 pixels, 51 x 15 mm
| Filter | Property | Value |
|---|---|---|
| Height | 31 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Viewing area (width) | 51 mm | |
| Display | 132 x 32 character | |
| type of backlight | optional | |
| IC controller/driver | ST7565 compatible | |
| MPU interface | SPI | |
| Thickness | 2 mm | |
| Width | 55 mm | |
| Viewing range (height) | 15 mm | |
| Technology | FSTN | |
| Background color | white |
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | CN |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
