EA DOGM132L-5 | DISPLAY VISIONS

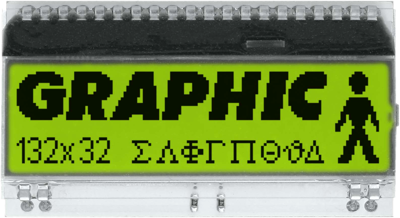

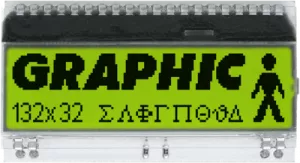

Graphic display, 132 x 32 character, STN, viewing area: 51 x 15 mm, EA DOGM132L-5
Unit Price (€ / pc.)
18.8139 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
18.81 € *
Price list
Quantity
Price per unit*
1 pcs.
18.8139 €
10 pcs.
16.5648 €
*incl. VAT plus shipping costs
Subject to prior sale
Graphic displays, type DOGM..L../DOGL..L.
Technology: STN positive, reflective, no backlight possible. Display color: dark green on yellow/green.
Technical attributes (type, pixels, viewing window dimensions): EA DOGM132L–5, 132 x 32 pixels, 51 x 15 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 51 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 31 mm | |
| Technology | STN | |
| Thickness | 2 mm | |
| IC controller/driver | ST7565 compatible | |
| MPU interface | SPI | |
| Width | 55 mm | |
| Display | 132 x 32 character | |
| Background color | yellow/green | |
| Viewing range (height) | 15 mm | |
| type of backlight | without |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
