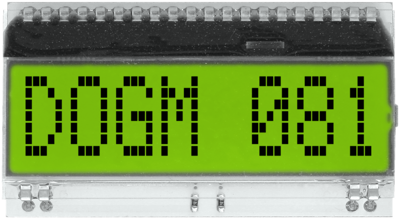

EA DOGM081L-A | DISPLAY VISIONS

LCD text displays, type DISPLAY VISIONS DOGM.

For low-power, hand held applications, with controller for 4-bit, 8-bit and SPI interface, supertwist LCD with adjustable contrast; optional LED backlight feature in 6 colors Character set: 156 programmed characters and 8 characters for user applications. Supply voltage: +3.3 V oder +5.0 V (typically 250 µA). Operating temperatures: –20 to +70 °C, with temperature compensation. Dimensions: 55 x 31 x 2.0 mm (5.8 mm with backlight).

LCD modules, type EA DOGM...L-A.

Technology: STN positive, reflective, no backlight possible. Display color: dark green on yellow/green.

Technical attributes (type, lines x characters, character height): EA DOGM081L-A, 1 x 8 characters, 11.97 mm
