EA DOGL128L-6 | DISPLAY VISIONS

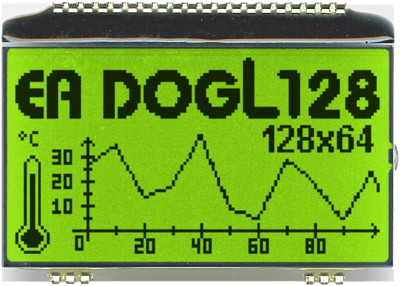

Graphic display, 128 x 64 character, STN, viewing area: 64 x 35.5 mm, EA DOGL128L-6
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.092 € *
Available: 41 pcs.
Graphic displays, type DOGM..L../DOGL..L.
Technology: STN positive, reflective, no backlight possible. Display color: dark green on yellow/green.
Technical attributes (type, pixels, viewing window dimensions): EA DOGL128L–6, 128 x 64 pixels, 64 x 36 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 128 x 64 character | |
| Technology | STN | |
| Viewing area (width) | 64 mm | |
| Viewing range (height) | 35.5 mm | |
| type of backlight | without | |
| Background color | yellow/green | |
| MPU interface | SPI | |
| IC controller/driver | ST7565 compatible | |
| Thickness | 2.8 mm | |
| Width | 68 mm | |
| Height | 51 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
