EA DIP240B-7KLW | DISPLAY VISIONS
Graphic display EA DIP240B-7KLW, white, blue
Unit Price (€ / pc.)
136.5049 € *
Standard delivery time from the manufacturer is: 1 Week

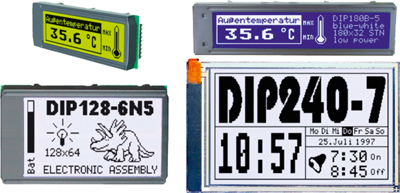

Graphic displays 240 x 128, type EA DIP240.
high-contrast LCD with controller, additional character set. Each character can be assigned an attribute (inverse, flashing, hidden). 8 pages (32 KB) of screen memory in graphic mode; Text can be logically linked to the graphic layer, connection to 8-bit data bus, backlit (requires external series resistor), for PCB mounting, optional plug-in installation with socket strips (2 items required).
Operating temperatures: - 20 to +70 °C, with temperature compensation.
Supply voltage: +5.0 V
Dimensions: 113 x 70 x 10.8
Font color: white
Backlight Color: blue
Type: EA DIP240B - 7KLW
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
