EA DIP205B-4NLW | DISPLAY VISIONS

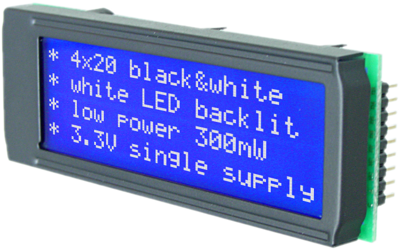

LCD text display, 4 x 20 character, viewing area: 19 x 61 mm, EA DIP205B-4NLW

Order No.: 73S2253
MPN:
EA DIP205B-4NLW
EA DIP205B-4NLW DISPLAY VISIONS LED-Modules
Image may differ
Unit Price (€ / pc.)
32.5108 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
32.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
32.5108 €

Characterdisplay, EA DIP205B-4NLW, DISPLAY VISIONS

4 by 20 character display blue-white. 3.75 mm character height. Compact high-grade display with extended temperature range. Directly mountable to PCB thanks pins. High-end backlight. Controller similar to HD44780 and SSD1803. Interface 4-/8-bit parallel and SPI.

Technical specifications
min. operating temperature -20 °C
IC controller/driver RW1073 compatible
Viewing range (height) 61 mm
Width 75 mm
Background color blue
Viewing area (width) 19 mm
Character height 3.75 mm
Display 4 x 20 character
max. operating temperature 70 °C
Thickness 10.8 mm
MPU interface 4-Bit, 8-Bit, SPI
type of backlight LED - white
Height 26.8 mm
Logistics
Country of origin CN
Customs tariff number 85444290
Compliance
RoHS conform in_review
SVHC free not_specified
