EA DIP203J-6NLW | DISPLAY VISIONS

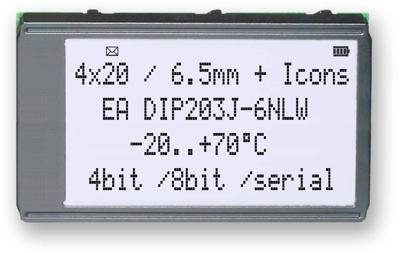

LCD text display, 4 x 20 character, FSTN, viewing area: 75 x 38 mm, EA DIP203J-6NLW
Discontinued
Unit Price (€ / pc.)
86.0608 € *
Available: 150 pcs.
Total Price:
86.06 € *
Price list
Quantity
Price per unit*
1 pcs.
86.0608 €
5 pcs.
80.8843 €
15 pcs.
77.8022 €
50 pcs.
74.3512 €
150 pcs.
71.2453 €
*incl. VAT plus shipping costs
Subject to prior sale
LCD modules, 4 x 20, type EA DIP203.
With SSD1803 controller; Voltage supply: 3.3 V (4.0 mA without backlight), Font height: 6.45 mm. With serial SPI interface. Character set: program with fixed set of 240 characters, 8 characters for user specific programming, backlight, integrated temperature compensation, Operating temperatures: - 20 to +70 °C. Dimensions: 75 x 45.8 x 10.8 mm.
Type: EA DIP203J-6NLW, black, white
Technical specifications
| Filter | Property | Value |
|---|---|---|
| IC controller/driver | SSD1803 compatible | |
| Height | 45.8 mm | |
| Background color | white | |
| Technology | FSTN | |
| max. operating temperature | 70 °C | |
| type of backlight | LED - white | |
| min. operating temperature | -20 °C | |
| Thickness | 10.8 mm | |
| Viewing area (width) | 75 mm | |
| MPU interface | 8-Bit, SPI | |
| Viewing range (height) | 38 mm | |
| Width | 75 mm | |
| Display | 4 x 20 character |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
