EA DIP162J-DN3LW | DISPLAY VISIONS

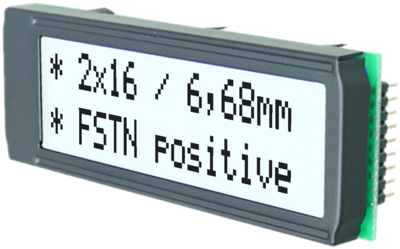

LCD text display, 2 x 16 character, FSTN, viewing area: 19 x 61 mm, EA DIP162J-DN3LW
Order No.: 73S2252
MPN:
EA DIP162J-DN3LW
Unit Price (€ / pc.)
30.8091 € *
Standard delivery time from the manufacturer is: 1 Week
Characterdisplay, EA DIP162J-DN3LW, DISPLAY VISIONS
2 by 16 character display black and white. 6.68 mm character height. Compact high-grade display with extended temperature range. Directly mountable to PCB thanks pins. High-end backlight. Controller compatible to HD44780 / KS7066 4- and 8- bit interface
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 2 x 16 character | |
| Viewing area (width) | 19 mm | |
| Viewing range (height) | 61 mm | |
| Technology | FSTN | |
| max. operating temperature | 70 °C | |
| Height | 26.8 mm | |
| type of backlight | LED - white | |
| IC controller/driver | HD44780 compatible | |
| Character height | 6.68 mm | |
| Width | 75 mm | |
| min. operating temperature | -20 °C | |
| Background color | white | |
| Thickness | 10.8 mm | |
| Image | positive | |
| MPU interface | 4-Bit, 8-Bit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
